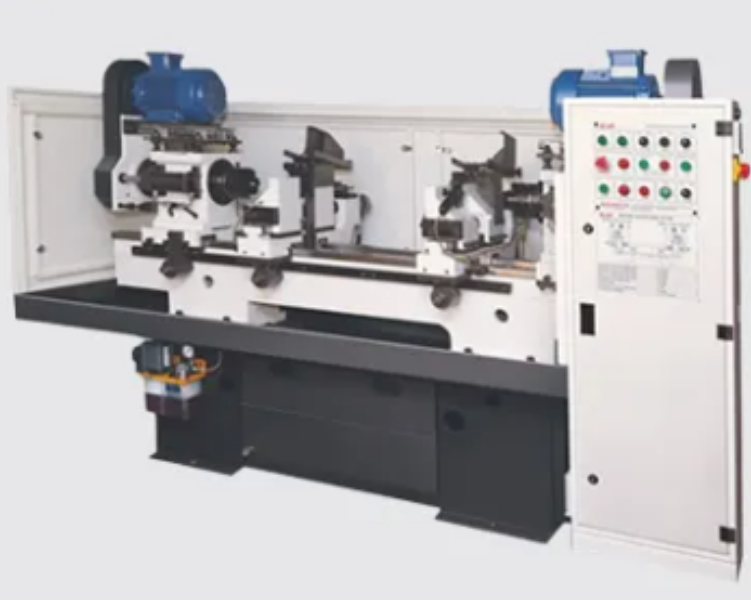

HI, Greetings From SKY ENGINEERING. Our Company Based On Coimbatore Location. It accurately locates the center of a workpiece, which is crucial for subsequent machining operations. This ensures that all cuts and features are symmetrical and correctly aligned. This process involves machining the flat surfaces of a workpiece, providing a smooth finish and ensuring that parts fit together correctly. The machine can remove material from the face of the workpiece to achieve the desired dimensions and surface quality.
Key Features :
# Rugged and predesign ground cast iron bed
# Ground and scraped milling slides.
# Spindle with taper roller bearings.
# Hydraulic operated, hard crome plated quill type spindle.
# Through spindle coolant.
# Linear guide mounted spindle motors.
# Self centering vice with Hardened and ground work holding vee blocks.
# Hardened and ground tool holder provided with carbide cutter insert type tools.
# All machine setting elements are at operator side.
# Centralized auto lubrication system.
# Complete PLC Panel with high quality wiring and component.
# Special cover protection for machine slides and vice screw.
# Machine with enclosure.
# Operating and maintenance manual.
Technical Specifications - ICF Models
Specification ICF - 500 ICF - 1000
Maximum Length of Work Piece (Two Vices) 500 mm 1000 mm
Minimum Length of Work Piece 100 mm 100 mm
Maximum Dia Admitted in Two Vices 125 mm 125 mm
Minimum Dia Admitted in Two Vices 15 mm 15 mm
Maximum Dia Can be Faced (STD, Tool Holder) 65 mm (Optional - 80 mm) 65 mm (Optional - 80 mm)
Spindle RPM 750 STD (350, 500, 1000 Optional) 750 STD (350, 500, 1000 Optional)
Spindle Motor LH/RH 3 HP / 2.2 KW (945 RPM) 3 HP / 2.2 KW (945 RPM)
Maximum Stroke of Each Quill 50 mm 50 mm
Quill Feed System 2 Hydraulic cylinders 2 Hydraulic cylinders
Job Clamping System Hydraulic Motor Driven Screw Clamp Hydraulic Motor Driven Screw Clamp
Center Drill Size BSSS3 to BSSS6 or as Per ISI STD BSSS3 to BSSS6 or as Per ISI STD
Lubrication Auto Centralized Lubrication System Auto Centralized Lubrication System
Hydraulic Motor Power 4.5 HP / 3.3 KW (1440 RPM) 4.5 HP / 3.3 KW (1440 RPM)
Coolant System Through Spindle (RV 401170 Pump, 0.37 He 3Ph) Through Spindle (RV 40 / 170 Pump, 0.37 en 3Ph)
Total Machine Volume with STD Equipment's Length 2000 x Breadth 1200 x Height 1600 mm Length 2500 x Breadth 1200 x Height 1600 mm
Total Machine Weight 1760 Kg (1535 Kg Machine + 225 Kg Hyd. System) 1880 Kg (1655 Kg Machine + 225 Kg Hyd. System)
Power Requirement 11 HP / 8.2 KW 11 HP / 8.2 KW
Machine Colour White and Grey White and Grey.
Key Features :
# Rugged and predesign ground cast iron bed
# Ground and scraped milling slides.
# Spindle with taper roller bearings.
# Hydraulic operated, hard crome plated quill type spindle.
# Through spindle coolant.
# Linear guide mounted spindle motors.
# Self centering vice with Hardened and ground work holding vee blocks.
# Hardened and ground tool holder provided with carbide cutter insert type tools.
# All machine setting elements are at operator side.
# Centralized auto lubrication system.
# Complete PLC Panel with high quality wiring and component.
# Special cover protection for machine slides and vice screw.
# Machine with enclosure.
# Operating and maintenance manual.
Technical Specifications - ICF Models
Specification ICF - 500 ICF - 1000
Maximum Length of Work Piece (Two Vices) 500 mm 1000 mm
Minimum Length of Work Piece 100 mm 100 mm
Maximum Dia Admitted in Two Vices 125 mm 125 mm
Minimum Dia Admitted in Two Vices 15 mm 15 mm
Maximum Dia Can be Faced (STD, Tool Holder) 65 mm (Optional - 80 mm) 65 mm (Optional - 80 mm)
Spindle RPM 750 STD (350, 500, 1000 Optional) 750 STD (350, 500, 1000 Optional)
Spindle Motor LH/RH 3 HP / 2.2 KW (945 RPM) 3 HP / 2.2 KW (945 RPM)
Maximum Stroke of Each Quill 50 mm 50 mm
Quill Feed System 2 Hydraulic cylinders 2 Hydraulic cylinders
Job Clamping System Hydraulic Motor Driven Screw Clamp Hydraulic Motor Driven Screw Clamp
Center Drill Size BSSS3 to BSSS6 or as Per ISI STD BSSS3 to BSSS6 or as Per ISI STD
Lubrication Auto Centralized Lubrication System Auto Centralized Lubrication System
Hydraulic Motor Power 4.5 HP / 3.3 KW (1440 RPM) 4.5 HP / 3.3 KW (1440 RPM)
Coolant System Through Spindle (RV 401170 Pump, 0.37 He 3Ph) Through Spindle (RV 40 / 170 Pump, 0.37 en 3Ph)
Total Machine Volume with STD Equipment's Length 2000 x Breadth 1200 x Height 1600 mm Length 2500 x Breadth 1200 x Height 1600 mm
Total Machine Weight 1760 Kg (1535 Kg Machine + 225 Kg Hyd. System) 1880 Kg (1655 Kg Machine + 225 Kg Hyd. System)
Power Requirement 11 HP / 8.2 KW 11 HP / 8.2 KW
Machine Colour White and Grey White and Grey.
