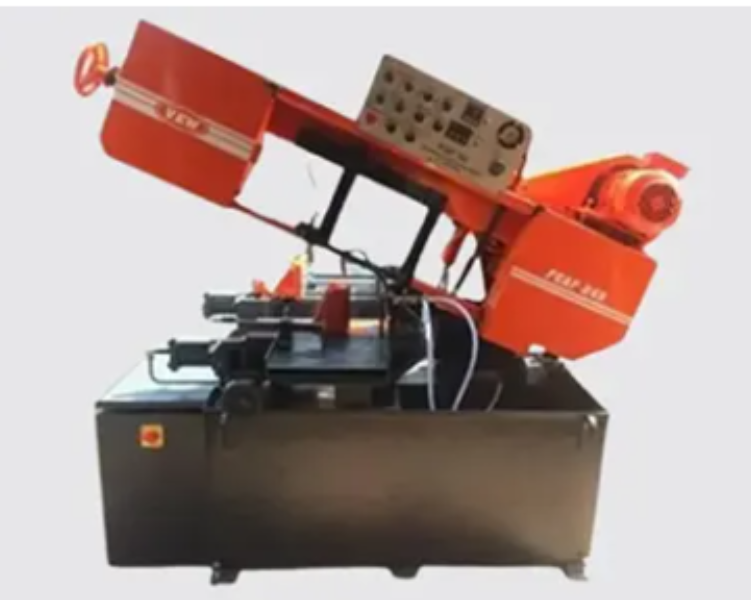

Horizontal Swing Type Band Saw Machines are metal cutting machines that use a band saw blade to cut metals. The machine's design allows the saw blade to swing horizontally, enabling efficient cutting of various metal shapes and sizes.
* Horizontal swing design for easy loading/unloading.
* Adjustable blade tension and speed control.
* Hydraulic or pneumatic vice for secure material holding.
* CNC or manual control systems.
* High-precision cutting with minimal kerf loss.
*For More Details please download our Catalogue.
Specification - Value
Cutting Capacity - 250 & 230 x 230 MM
Blade Size - 3760 x 27 x 0.9 MM
Feed Length - 0 - 400 MM
Drive Motor - 3 HP
Hydraulic Motor - 1 HP
Coolant - 0.15 HP
Machine Operations - Hydraulic
Cutting Speed - 22, 44, 66, 88 m/min (4 Step SPZ Pulley)
Variable Speed - 20-100 m/min by VFD, Optional
Band Tension - Manual
Overall Size (L x W x H) -1975 x 1950 x 1730 MM
Machine Weight - 950 Kg
Bundle Cutting Size (Optional Equipment) - 110 - 150 W x 60 - 100 H MM
